Description

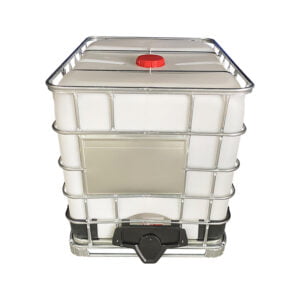

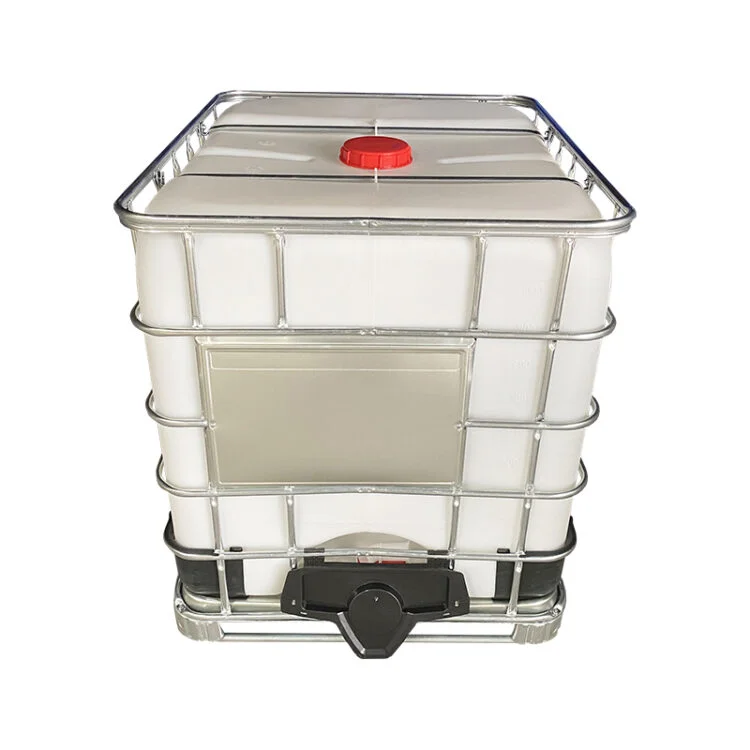

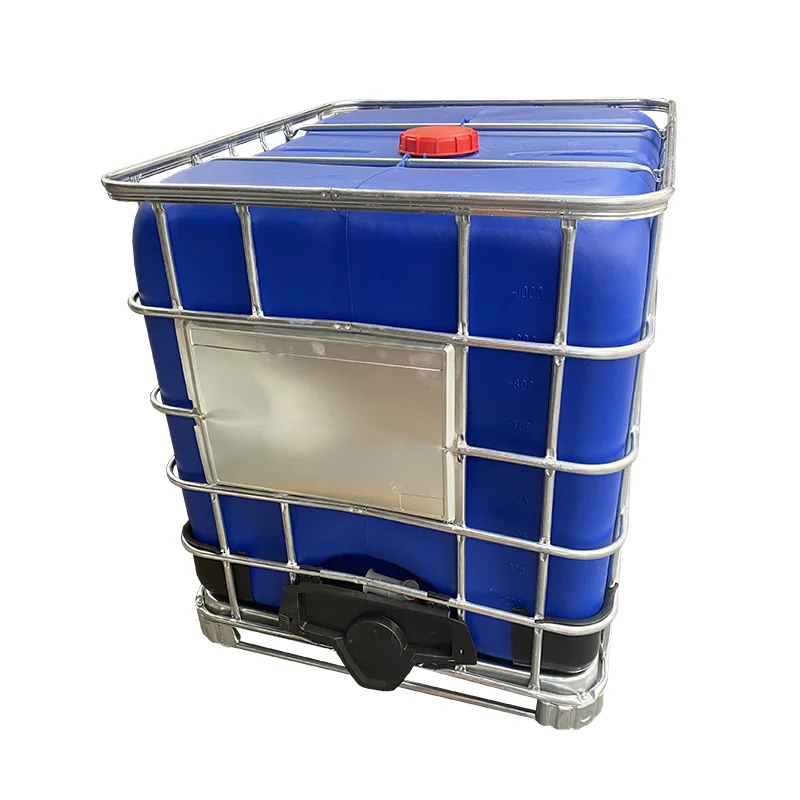

1000L IBC Tank UN 275 gallon poly totes
275 gallon poly totes have external protective cages constructed from galvanized steel. Rigid steel cages provide IBC container durability and corrosion resistance. The internal 275 gallon IBC liner has been blow-mold manufactured from virgin high-density polyethylene (HDPE)
275 gallon IBC tanks make excellent trade assets within agriculture, paints, coatings, chemicals, petrochemicals and the energy sector, non-drinking water, process/waste water, as well as road and construction work, for a few examples.
Spec
275 gallon IBC containers are designed for the successful handling of compatible chemicals and fluids that have been rated up to 1.9 specific gravity. 275 gallon poly totes measure 48” L x 40” W x 46″ H, measuring very near standard pallet dimensions. For handling, they have 4 way forklift/pallet jack access, feature an easy-to-integrate cubical design, 6” top fill port, and 2” NPT male quick connect discharge valve.
These totes are often utilized as drum-pallet replacements due to their shipping volume equivalence and the IBC’s space-saving design. A single 275 gallon caged tote can replace 5 drums that would require 1.25 pallets, efficiently saving space with an increasing IBC fleet. 1000liter IBC Tanks are excellent low cost IBC options that are reliable, durable containers.
ADDITIONAL INFORMATION
| Weight | 57kg±1kg |
|---|---|
| Dimensions | 48 × 40 × 46 in |
| Color | White,blue,Black |
| Manufactured In | Shandong,China |
| Forklift | 4 Way Cross-Directional Forklift Channels |
| Freight Class | 150 |
| Gallon Indicators | Yes |
| Gallon Capacity | 275 Gallon |
| Manufacturer | IBC Tanks |
| Material | Polyethylene |
| Stacking Capability | 3 High |
| Translucent | Yes |
| UV Inhibitors | Yes |
| Max Temperature (°F) | 105°F |
| Specific Gravity | 1.9 |
| Opening | 6″ Threaded Vented Lid |
| Outlets | 2″ Drain Valve w/ Male Quick Disconnect Coupler |
| Standards | UN |
| Product specification sheet | |||||
| IBC tank 1*40HQ container can fit 42pcs | |||||
| Product name | 1000L IBC Tank | ||||
| Certificate | UN approved | ||||
| Product description | 1000L IBC Tank, with metal cage and frame, DN50 ball valve / butterfly valve, breathable cover / blind cover | ||||
| Nominal / full mouth capacity (L) | 1000 | ≥1050 | ||
| Approved weight (kg) | 57±1 | ||||
| Stacking weight (kg) | 4056 | ||||
| Maximum allowable weight (kg) | 2013 | ||||
| Maximum allowable density (g/m) | 1.9 | ||||
| Liner material | 4570UV/4261AG UV60005/580M/4506 | ||||
| Production method | Extrusion blow molding | ||||
| Inner container weight (kg) | 15.5±1 | ||||
| Top thread type / pitch (mm) | SLCS160 | 7 | |||
| Filling caliber (mm) | 150 | ||||
| Dimensions（mm) | Top cover | Breathable cover | Blind cover | ||
| Material | HDPE | ||||
| length | 1200±5 | Gasket material | EPDM | EVA （Inner cover） | EPDM |
| width | 1000±5 | Breathable device (optional) | Breathable plug / two–way breathable membrane | No | |
| height | 1145±5 | ||||
| Weight | 57Kg | Drain valve | |||
| Wall Thickness | 1.6-1.8mm | Type | DN50 ball valve / butterfly valve | ||
| Tray height D： | 120 | Material | PE/PP/ETFE | ||
| Fork hole center distance E: | 800 | Gasket material | PE/FKM | ||
| Fork hole height F： | 90 | inside diameter （mm) | 50±1 | ||
|
Note: Please confirm the chemical compatibility of the contents and the packaging container, and provide the corresponding sealing material for selection. | Export thread type / pitch | SCCS60 | 6 | ||
| Tray | |||||
| Material | Galvanized steel DC53D | ||||
| Processing methods | stamping | ||||
| Frame | |||||
| Material | Galvanized steel pipe DC51D | ||||
| Processing methods | Steel pipe welding, pipe forming and reassembly | ||||
| other | |||||
| Valve switch insurance, safety cover, aluminum foil seal, discharge bend, instruction manual, certificate etc | |||||
